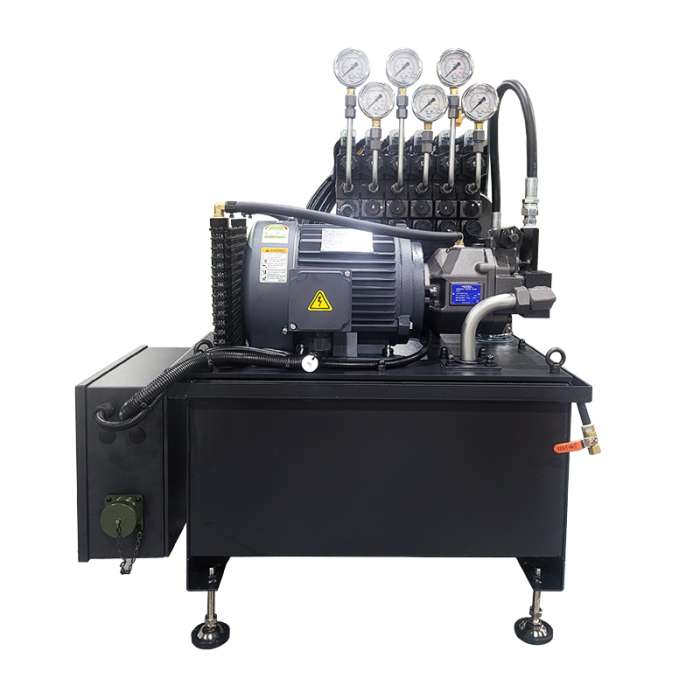

Parts : Hydraulic Unit and Valve Assy
Model Number : G500-44-205-00
Manufacturer : Kwangrim
Categories:
Product Description
Note :
- 1. Setting Pressure : 7.0 Mpa (Max. Pressure : 21.0 Mpa)
When adjusting pressure, it is necessary to consider motor capacity for controlling both pressure and flow.
2. Main Power & Setting
| 3.7kW * 220 / 380V * 50/60Hz | ||||
| Votage (V) | 220 | 380 | ||
| Frequency (Hz) | 50 | 60 | 50 | 60 |
| Current (A) | 16 | 9.3 | 13.7 | 7.9 |
| Flow (L/min) | 22 | 25 | 22 | 25 |
3. Fluid temperature: Below ambient + 30°C
4. Operating fluid : ISO VG 32
5. Tank Capacity : 60L
6. Noise : Less than 75dB under no-load conditions
7. Valves are based on the circuit. Hydraulic valve DC24V.
8. Includes an electrical box.
Product Specifications
| Product Name | Hydraulic Unit and Valve Assy 60L - 5HP |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | Kwangrim |
| Enable Request a Quote | Yes |
