Availability: Shipping directly from South korea. Import duties are included
Estimated Delivery: 14 Days
SKU
702MSF30024
$780.00

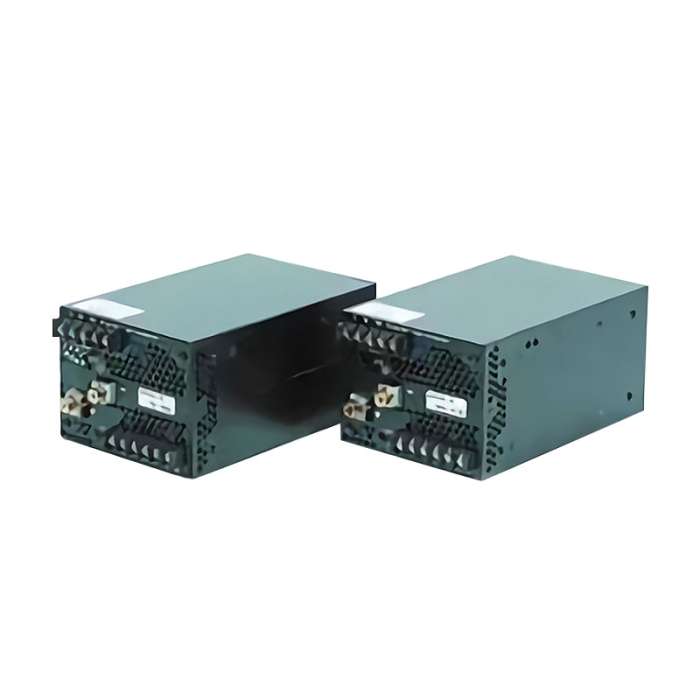

Part : Switching Mode Power Supply MSF 300-24

Manufacturer Part Number : 702MSF30024

Manufacturer : Fine Suntronix. Orient electronics

Delivery & Return

Product Description

• Over current protection

• Over voltage protection

• Complies with FCC Part 15 and EN 5022

• Class A Limits

• Remote Sensing

Product Specifications

Electrical Specifications
 MODELMSF300-24MSF300-28MSF300-36MSF300-48
INPUTVOLTAGE, FREQUENCYAC100-120V / 200-240V (AC 90~ 132V / 180 ~ 264V or AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable
CURRENT [A]110V7.0 ( I₀=100%)
220V3.5 (I₀=100%)
EFFICIENCY [%]110V81 typ82 typ82 typ83 typ
220V
INRUSH CURRENT30A typ (ACIN 110V, I₀=100%), 60A typ (ACIN 220V, I₀=100%) at cold start.
OUTPUTVOLTAGE [V]24283648
CURRENT [A]13118.56.5
REGULATION, LINE [mV]120 Max140 Max180 Max240 Max
REGULATION, LOAD [mV]240 Max280 Max360 Max480 Max
RIPPLE [mVp-p]240 Max280 Max360 Max480 Max
RIPPLE, NOISE [mVp-p]290 Max330 Max410 Max530 Max
TEMPERATURE DRIFT 0~+50℃ [mV]360 Max420 Max540 Max720 Max
RISE TIME [ms]500 max (AC IN 110V, I₀=100%)
HOLDING TIME [ms]20 typ (AC IN 110V, I₀=100%)
PROTECTION CIRCUITOVER CURRENT PROTECTIONWorks at over 110% of rating and recovers automatically
OVER VOLTAGE PROTECTIONWorks at 115 ~ 140% of rating
ELECTRICALLY ISOLATEDINPUT-OUTPUTAC 3,000V 1 minute current 20mA, DC 500V 100MΩ (At room temperature & humidity)
INPUT-CASE, FGAC 2,000V 1 minute current 20mA, DC 500V 100MΩ (At room temperature & humidity)
OUTPUT-CASE, FGAC 500V 1 minute current 100mA, DC 500V 100MΩ (At room temperature & humidity)
ENVIRONMENTOPERATING TEMP AND HUMID-10 ~ +50℃, 20 ~ 90% RH(Non condensing)
STORAGE TEMP AND HUMID-20 ~ +75℃, 20 ~ 90% RH(Non condensing)
VIBRATION10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along   X, Y and Z axis
IMPACT10G for 20ms once on each X, Y and Z axis
SAFETYSAFETY REGULATIONUL, C-UL, CEUL, C-UL, CEUL, C-UL, CEUL, C-UL, CE
LINE CONDUCTED RF VOLTAGEComplies with FCC Part15 and EN55022 Class A Limits

Product Drawing

Switching Mode Power Supply MSF300-48
