Part : Switching Mode Power Supply MSF 200-24

Manufacturer Part Number : 702MSF20024

Manufacturer : Fine Suntronix. Orient electronics

Delivery & Return

Product Description

• Over current protection

• Over voltage protection

• Complies with FCC Part 15 and EN 5022

• Class A Limits

• Remote Sensing

Product Specifications

Electrical Spec

 MODELMSF200-24MSF200-28MSF200-36MSF200-48
INPUTVOLTAGE, FREQUENCYAC100-120V / 200-240V (AC 90~ 132V / 180 ~ 264V or   AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable
CURRENT [A]110V4.1 ( I₀=100%)
220V2.0 ( I₀=100%)
EFFICIENCY [%]110V80 typ80 typ82 typ82 typ
220V
INRUSH CURRENT15A typ(ACIN 110V, I₀=100%), 30A typ(ACIN 220V,   I₀=100%) at cold start.
OUTPUTVOLTAGE [V]24283648
CURRENT [A]8.37.15.54.1
REGULATION, LINE   [mV]120 Max140 Max180 Max240 Max
REGULATION, LOAD   [mV]240 Max280 Max360 Max480 Max
RIPPLE [mVp-p]240 Max280 Max360 Max480 Max
RIPPLE, NOISE   [mVp-p]290 Max330 Max410 Max530 Max
TEMPERATURE DRIFT   0~+50℃ [mV]360 Max420 Max540 Max720 Max
RISE TIME [ms]800 max (AC IN 110V, I₀=100%)
HOLDING TIME [ms]15 typ (AC IN 110V, I₀=100%)
PROTECTION CIRCUITOVER CURRENT PROTECTIONWorks at over 110% of rating and recovers   automatically
OVER VOLTAGE   PROTECTIONWorks at 115 ~ 140% of rating
ELECTRICALLY
    ISOLATED
INPUT-OUTPUTAC 3,000V 1 minute current 20mA, DC 500V 100MΩ (At   room temperature & Humidity)
INPUT-CASE, FGAC 2,000V 1 minute current 20mA, DC 500V 100MΩ (At   room temperature & Humidity)
OUTPUT-CASE, FGAC 500V 1 minute current 100mA, DC 500V 100MΩ (At   room temperature & Humidity)
ENVIRONMENTOPERATING TEMP AND HUMID-10 ~ +50℃, 20 ~ 90% RH(Non condensing)
STORAGE TEMP AND   HUMID-20 ~ +75℃, 20 ~ 90% RH(Non condensing)
VIBRATION10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along   X, Y and Z axis
IMPACT10G for 20ms once on each X, Y and Z axis
SAFETYSAFETY REGULATIONUL, C-UL, CEUL, C-UL, CEUL, C-UL, CEUL, C-UL, CE
LINE CONDUCTED RF   VOLTAGEComplied with FCC Part15 and EN55022 Class A Limits

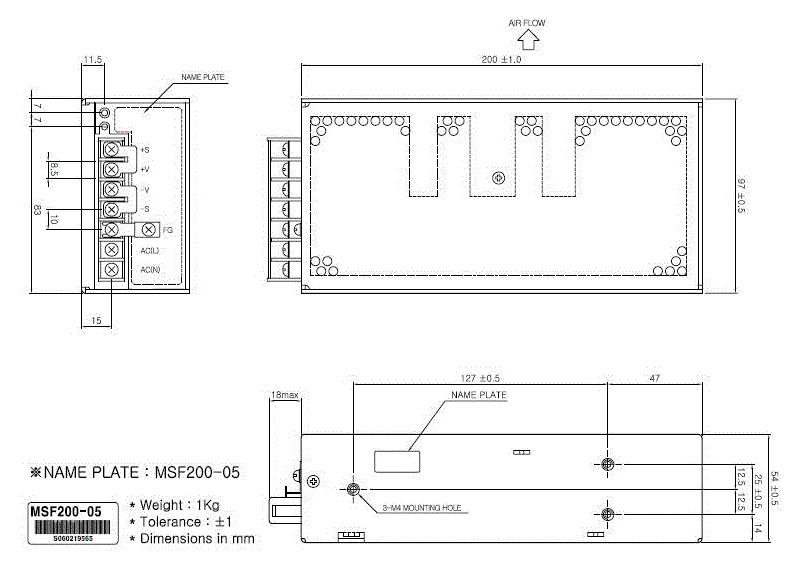

Drawing

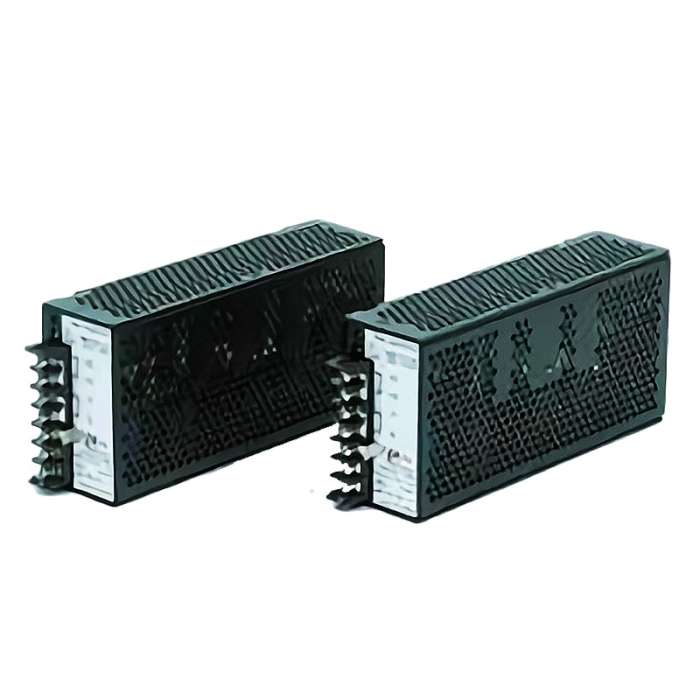

Switching Mode Power Supply MSF 200-24
