SKU
591BTW13001SK
$2,050.00

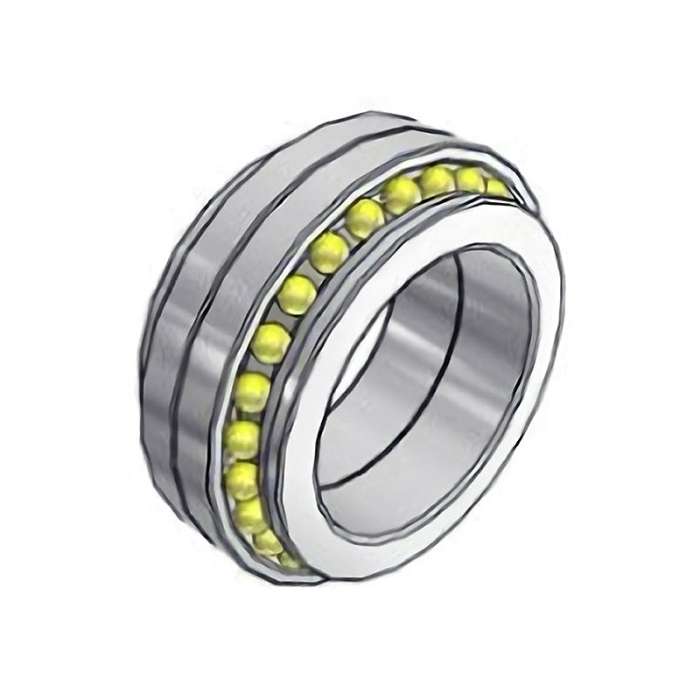

Parts : SKF Angular Contact Thrust Ball Bearing

Part Number : BTW 130 CTN9/SP (591BTW13001SK)

Dimensions : 130 mm x 200 mm x 84 mm

Manufacturer : SKF

Delivery & Return

Product Description

Bearings in the BTW series consist of two single row angular contact thrust ball bearings with a 60° contact angle, arranged back-to-back.

This configuration, combined with the large number of balls, enables these bearings to accommodate high axial loads in both directions and provides a high degree of system rigidity.

Bearings in the BTW series are separable. When the shaft washers are pressed together, preload within a predetermined range will result.

Product Specifications

DHd12Cr1,2r3,4
130 mm200 mm842 mm170.8 mm42 mm2 mm1 mm

SKF Angular Contact Thrust Ball Bearing BTW 110 CTN9SP

daDaDararb
156 mm187.5 mm190 mm2 mm1 mm

SKF Angular Contact Thrust Ball Bearing BTW 110 CTN9SP

Calculation Data
Basic Dynamic Load Rating106 kN
Basic Static Load Rating360 kN
Fatigue Load Limit13.2 kN
Attainable Speed for Grease Lubrication3,600 r/min
Attainable Speed for Oil-air Lubrication4,300 r/min
Preload870 N
Static Axial Stiffness1,032 N/μm
Reference Grease Quantity40.4 cm³
More Information
Product Name SKF Angular Contact Thrust Ball Bearing BTW 130 CTN9/SP
