SKU
591100BA1001KF
$65.00

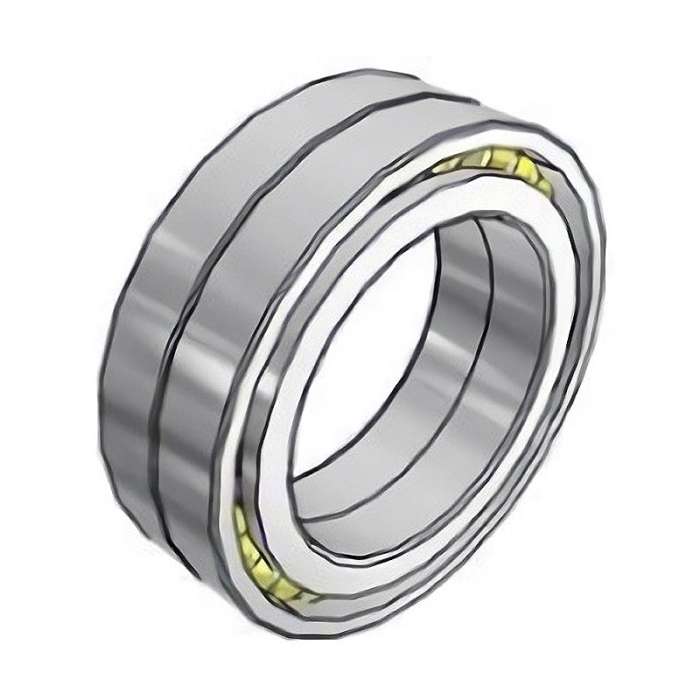

Parts : Angular Contact Thrust Ball Bearing

Part Number : BTM 100 A / P4CDBA (591100BA1001KF)

Dimensions : 123 mm x 137.1 mm x 45 mm

Manufacturer : SKF

Delivery & Return

Product Description

Bearings in the BTM series consist of two non-separable single row angular contact ball bearings arranged back-to-back.

They are designed to accommodate axial loads in both directions. When the inner rings are pressed together, preload within a predetermined range will result.

Product Specifications

dDHd1D1r1,2r3,4
100 mm150 mm45 mm123 mm137.1 mm1.5 mm1 mm

SKF Angular Contact Thrust Ball Bearings BTM 100 A P4CDBA

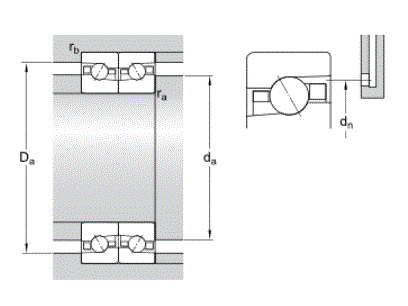

daDararbdn
107 mm145 mm1.5 mm1 mm119.7 mm

SKF Angular Contact Thrust Ball Bearing BTM 100 A P4CDBA

Calculation Data
Basic Dynamic Load Rating41.5 kN
Basic Static Load Rating102 kN
Fatigue Load Limit3.8 kN
Attainable Speed for Grease Lubrication7,900 r/min
Attainable Speed for Oil-air Lubrication9,400 r/min
Preload Class A400 N
Preload Class B1,200 N
Static Axial Stiffness for Preload A350 N/μm
Static Axial Stiffness for Preload B529 N/μm
Reference Grease Quantity22 cm³
