SKU
5917016ACD03KF
$750.00

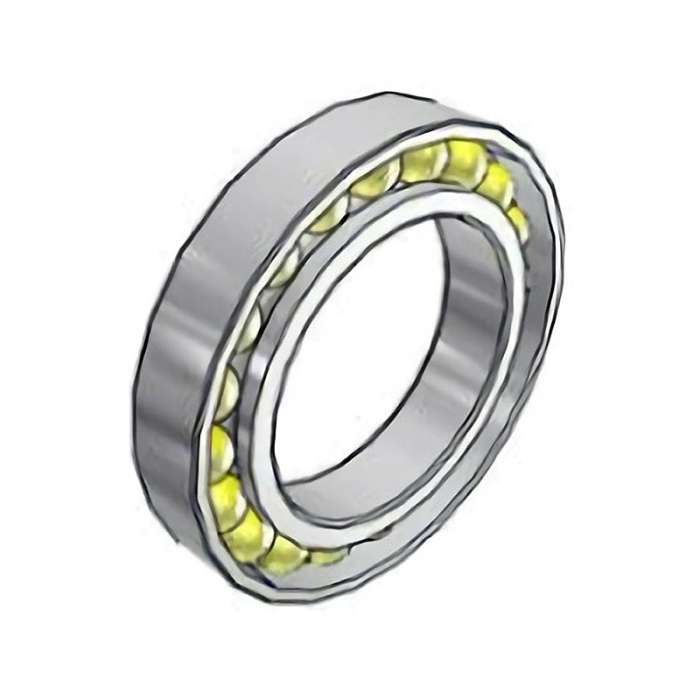

Parts : Angular Contact Thrust Ball Bearing

Part Number : 7016 ACD/P4A/PBCA (7016ACDP4A/PBCA)

Dimensions : 80 mm x 120 mm x 22 mm

Manufacturer : SKF

Delivery & Return

Product Description

Hybrid angular contact thrust ball bearings (designation suffix HC) have rings made of bearing steel and rolling elements made of bearing grade silicon nitride (ceramic).

As ceramic balls are lighter and have a higher modulus of elasticity and lower coefficient of thermal expansion than steel balls, hybrid bearings can provide the following advantages

Product Specifications

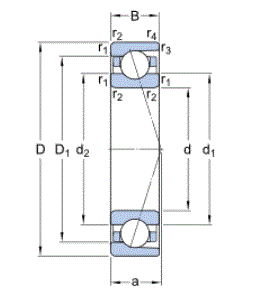

DHd1d2D1r1,2r3,4a
80 mm125 mm22 mm93.9 mm93.9 mm111.1 mm1.1 mm0.6 mm35 mm

Angular Contact Thrust Ball Bearing 7016ACDP4APBCA

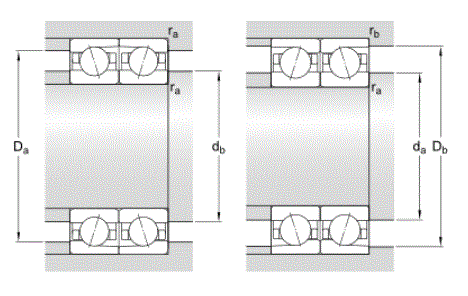

dadbDaDbrarbdn
86 mm86 mm119 mm121 mm1 mm0.6 mm96.9 mm

KF Angular Contact Thrust Ball Bearing 7016ACDP4APBCA

Calculation Data
Basic Dynamic Load Rating62.4 kN
Basic Static Load Rating58.5 kN
Fatigue Load Limit2.45 kN
Attainable Speed for Grease Lubrication9,500 r/min
Attainable Speed for Oil-air Lubrication15,000 r/min
Ball Diameter14.288 mm
Number of Balls20
Reference Grease Quantity11.1 cm³
More Information
Product Name SKF Angular Contact Thrust Ball Bearing 7016ACDP4A/PBCA
