Product Features
• Part: Air Filtro
• Manufacturer Part Number: AF 12
• Manufacturer: Seyang
Categories:
Product Description

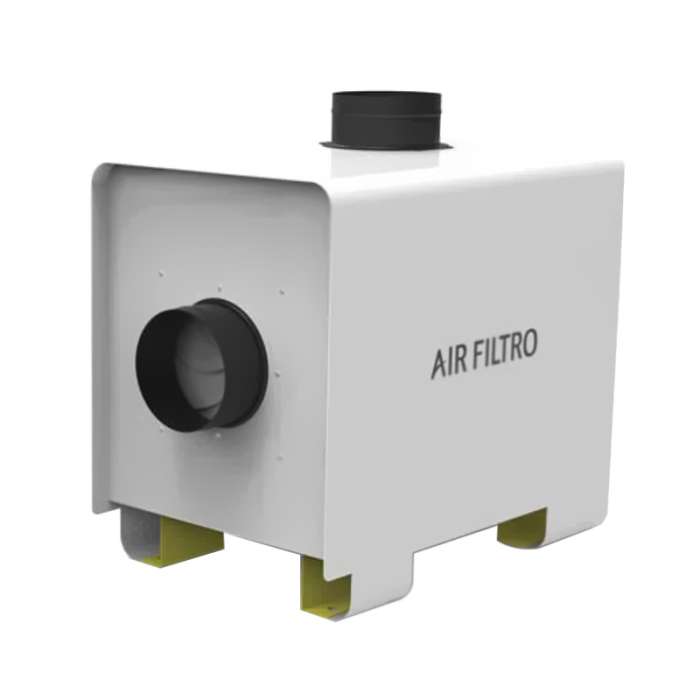

AIR FILTRO captures more than 98% of oil mist in the following way.
The oil-containing fume passes through the inside of the device and forms turbulence inside through the primary filter on the front to come into contact with the filter.
More than 98% of the fine oil separated from the filtrate through the chip separator is captured through the filter developed by our company.
The oil-filtered fume is discharged to the outside through the closed impeller to provide a pleasant working environment in the factory.
Performance Property
Compatible Machine Models
| Doosan | |||||
| LYNX 2100A | LYNX 2100M8A | LYNX 2100MB-NT | LYNX 220GA | LYNX 220MC | PUMA TL2000 |
| LYNX 2100A-NT | LYNX 2100M8B | LYNX 220A | LYNX 220L ALPHA | LYNX 300 | PUMA TL2000L |
| LYNX 2100B | LYNX 2100M8C | LYNX 220A-GL | LYNX 220LA | LYNX 300M | PUMA TL2000LM |
| LYNX 2100B-NT | LYNX 2100L8YA | LYNX 220A-GL-NT | LYNX 220LA-GL | DNM4500 | PUMA TL2000M |
| LYNX 2100GA | LYNX 2100L8YB | LYNX 220B | LYNX 220LC | VC 510 | PUMA TL2500 |
| LYNX 2100LA | LYNX 2100L8YC | LYNX 220B-GL | LYNX 220LC-GL | PUMA GT2100 | PUMA TL2500LM |
| LYNX 2100LB | LYNX 2100LYA | LYNX 220B-GL-NT | LYNX 220LMA | PUMA GT2100B | PUMA TL2500M |
| LYNX 2100LC | LYNX 2100LYB | LYNX 220B-NT | LYNX 220LMC | PUMA GT2100M | PUMA TL2500MX |
| LYNX 2100LMA | LYNX 2100MA | LYNX 220C | LYNX 220LM8A | PUMA GT2100MB | |
| LYNX 2100LMB | LYNX 2100MA-NT | LYNX 220C-GL | LYNX 220LM8B | PUMA GT2600 | |
| LYNX 2100LMC | LYNX 2100MB | LYNX 220C-GL-NT | LYNX 220MA | PUMA GT2600M | |
Product Specifications
| MODEL | Power(V) | Motor(W) | Revolution per minunt (rpm) | Air volume (m3/min) | Noise (db) | Weight (kg) |
| AF 12 | AC220V (50/60Hz) Single Phase | 150w | 3450 | 10 | 63 ±2 | 23 |
External Dimensions
| FORM | SIZE | BOLTING SIZE | DUCT | |||||
| Dimensions | A | B | C | D | E | F | G | H |
| AF 12 | 446 | 350 | 452 | 226 | 350(M8) | 230 | 122 | 69 |
Installation Photo
Download
CATALOG
USER MANUAL
| Product Name | Seyang Air Filtro AF 12 |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included |
| Estimated Delivery | 21 Days |
| Shipping For Product | 300.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | Seyang |
| Enable Request a Quote | No |
