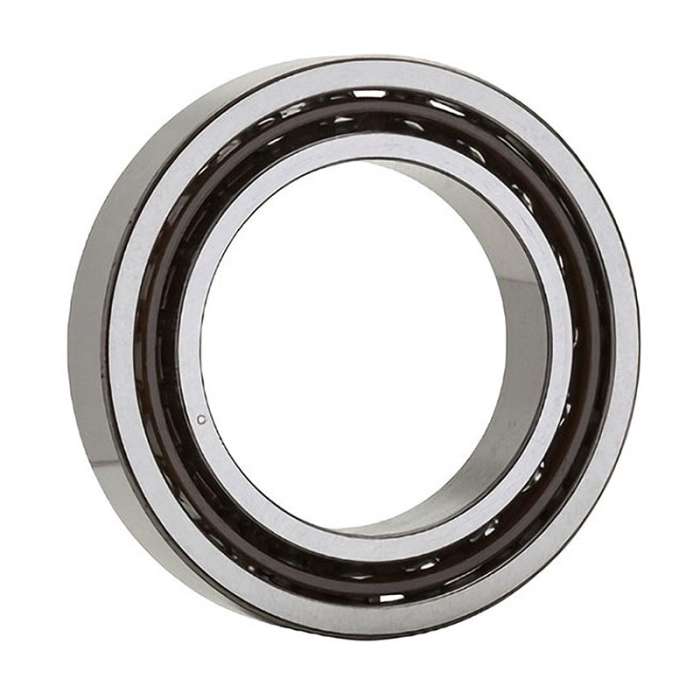

Parts : Angular Contact Bearing
Part Number : 70BNR10STYNDBBELP-01 (59170BNR1001NS)
Dimensions : 70 mm x 110 mm x 20 mm
Manufacturer : NSK
Categories:
Product Description
The limit speed for angular contact ball bearings is high. They can simultaneously bear the radial load and axial load or bear the pure axial load alone.
The axial load capacity of the bearing is determined by the contact angle and increases as the contact angle increases.
Product Specifications
| Specifications | ||
| Boundary Dimensions | d | 50 mm |
| D | 80 mm | |
| B | 16 mm | |
| r min | 1.1 mm | |
| r1 min | 0.6 mm | |
| Basic Load Ratings | Cr Dynamic | 12.2 kN |
| Cor Static | 9.9 kN | |
| Permissible Axial Load | 9.2 kN | |
| Effective Load Center | 18.4 mm | |
| Mass | 0.266 kg | |
| Limiting Speeds | Grease | 27,700 min |
| Oil | 43,100 min | |
| Product Name | NSK Angular Contact Ball Bearing 70BNR10STYNDBBLEP4Y-01 |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
