SKU
1212T007
$410.00

Parts : Angular Contact Ball Bearing

Part Number : 7080AE2DBCP35P4BU214 (1212T007)

Dimensions : 400 mm x 600 mm x 90 mm

Manufacturer : NSK

Delivery & Return

Product Description

If the load on angular contact ball bearings becomes too small, or if the ratio of the axial and radial loads for matched bearings exceeds during operation slippage between the ball and raceways occurs,

which may result in smearing. Especially with large bearings since the weight of the rollers and cafe is high. If very small bearing loads are expected please consult with NSK for selection of the bearings.

Product Specifications

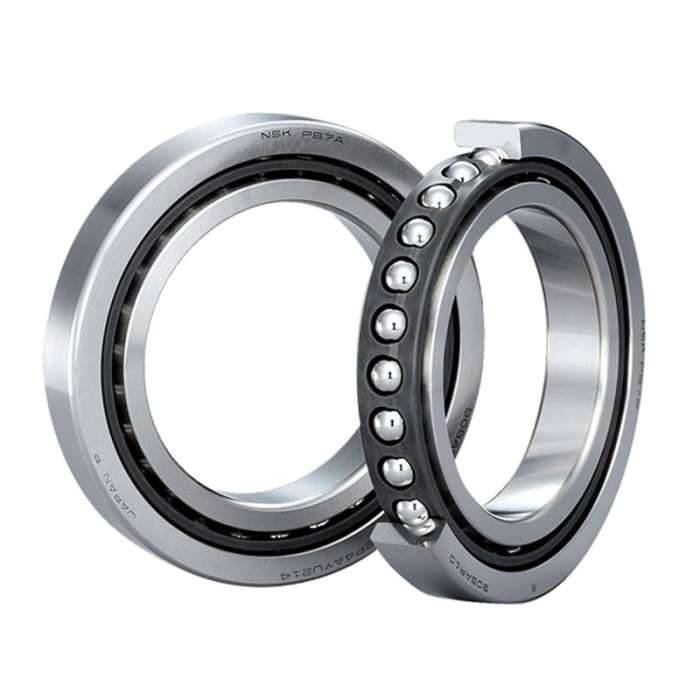

NSK Angular Contact Ball Bearing 7080AE2DBCP35P4BU214

Specifications

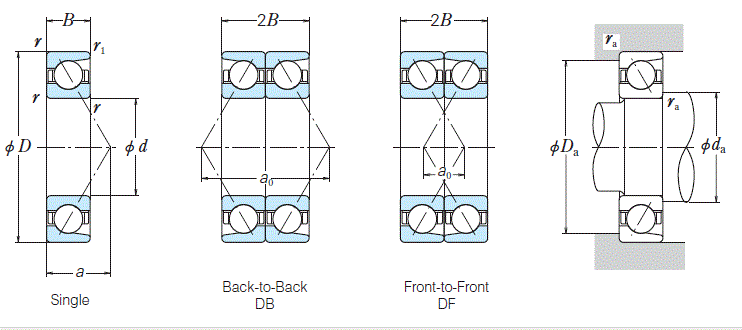

Boundary Dimensionsd400 mm
D600 mm
B90 mm
r min5 mm
r1 min2 mm
Basic Load Ratings (Single)Cr555 kN
Cor1,010 kN
Cr57,000 kgf
Cor103,000 kgf
Eff Load Centers189.3 mm
Abutment and Fillet Dimensionsda429
Da566
Ra4

NSK Angular Contact Ball Bearing 7080AE2DBCP35P4BU214

Specifications
Basic Load Ratings (Matched)Cr950 kN
Cor2,030 kN
Cr92,000 kgf
Cor207,000 kgf
Load Center SpacingsDB378.7 mm
DF198.7
Abutment and Fillet Dimensionsdb(3)-
Db578 mm
rb(3) max2 mm
Mass (Approx.)85.9 kg
