SKU
240BAR10SDBLP4A
$2,650.00

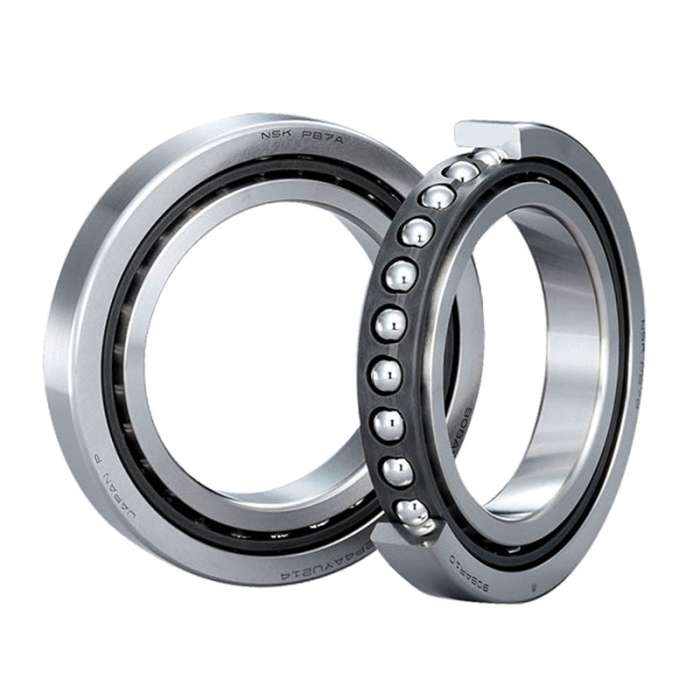

Parts : Angular Contact Ball Bearing

Part Number : 240BAR10SDBLP4A

Dimensions : 240 mm x 360 mm x 108 mm

Manufacturer : NSK

Delivery & Return

Product Description

The NSK range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers.

These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.

Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triple sets, quadruple sets, or multiple sets.

NSK offers one of the most comprehensive ranges of angular contact ball bearings.

Product Specifications

NSK Angular Contact Ball Bearing 200BTR10SDBLP4A

Specifications
Boundary Dimensionsd240 mm
D360 mm
2B108 mm
r min3 mm
r1 min1.1
Basic Load RatingsCr Dynamic190 kN
Cor Static545 kN
Permissible Axial Load370 kN
Contact Angle30°
Effective Load Center113.5
Mass19.9 kg
Limiting SpeedsGrease2,200 rpm
Oil2,900 rpm

NSK Angular Contact Ball Bearing 200BTR10SDBLP4A

Specifications
Abutment and Fillet Dimensionsda min254 mm
Db max353 mm
ra max2.5 mm
rb max1 mm
Preload (DB and DF Arrangement)EL651
L9,162
Axial Rigidity (DB and DF Arrangement)EL431
L1,077
Measured Axial ClearanceEL-5
L-48
