SKU
591200BTR1001NS
$2,250.00

Parts : Angular Contact Ball Bearing

Part Number : 200BTR10SDBLP4A (591200BTR1001NS)

Dimensions : 200 mm x 310 mm x 99 mm

Manufacturer : NSK

Delivery & Return

Product Description

The NSK range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers.

These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.

Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triple sets, quadruple sets, or multiple sets.

NSK offers one of the most comprehensive ranges of angular contact ball bearings.

Product Specifications

Specifications
Boundary Dimensionsd200 mm
D310 mm
2B99 mm
r min2.1 mm
r1 min1.1 mm
Basic Load RatingsCr Dynamic201 kN
Cor Static505 kN
Permissible Axial Load292 kN
Contact Angle40 °
Effective Load Center131.7
Mass14.2 kg
Limiting SpeedsGrease2,600
Oil3,400
Specifications
Abutment and Fillet Dimensionsda min212 mm
Db max303 mm
ra max2 mm
rb max1 mm
Preload (DB and DF Arrangement)EL888
L10,629
Axial Rigidity (DB and DF Arrangement)EL678
L1,577
Measured Axial ClearanceEL-5
L-38

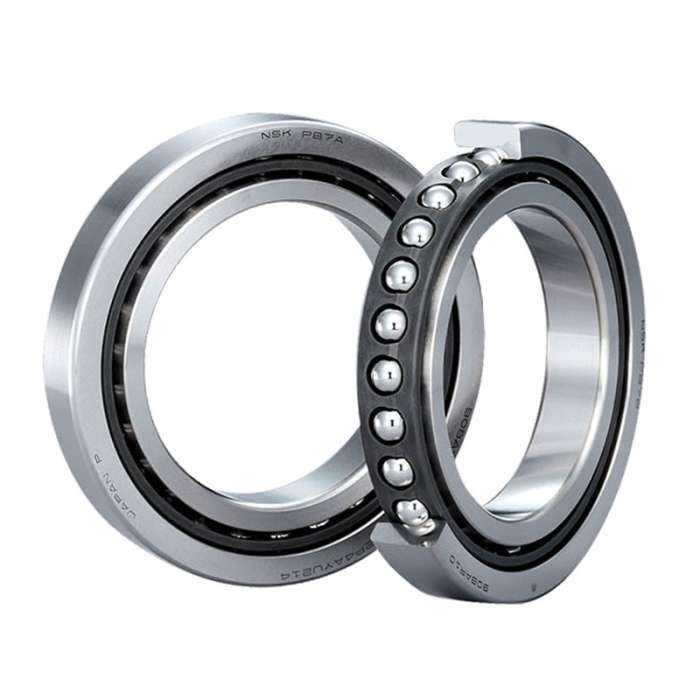

NSK Angular Contact Ball Bearing 200BTR10SDBLP4A

NSK Angular Contact Ball Bearing 200BTR10SDBLP4A
