SKU
593NN3020T02NA
$330.00

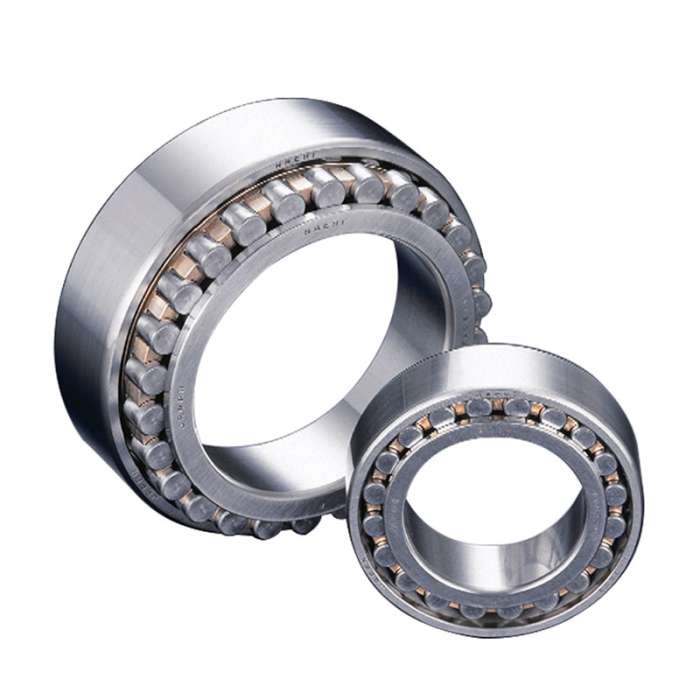

Parts : Cylindrical Roller Bearing

Part Number : NN3020M2K (593NN3020T02NA)

Dimensions : 100 mm x 150 mm x 37 mm

Manufacturer : NACHI

Delivery & Return

Product Description

• Simple design providing high accuracy.

• Increased number of rollers achieve higher rigidity.

• Achieve lower heat generation than a tapered roller bearing due to less sliding friction.

• Tapered bore allows radial internal clearance to be adjusted after mounting.

• This bearing cannot accept axial load.

Product Specifications

Specifications
Bearing No.Cylindrical BoreNN3020
Tapered BoreNN3020K
Boundary Dimensionsd100 mm
D150 mm
B37 mm
Ew137 mm
r min1.5 mm
Basic Dynamic Load Rating157 Cr (kN)
Basic Static Load Rating265 Cor (kN)
Specifications
Limiting SpeedGrease Lubrication6,100 min-1
Oil Lubrication7,200 min-1
Corner Radiusda min108.5 mm
da1 min112 mm
DA max141.5 mm
DA min139 mm
ra max1.5 mm
Tapered Bore Mass2.26 kg
Tapered Bore Bearing No.NN3020K
