SKU
706SCO300200
$150.00

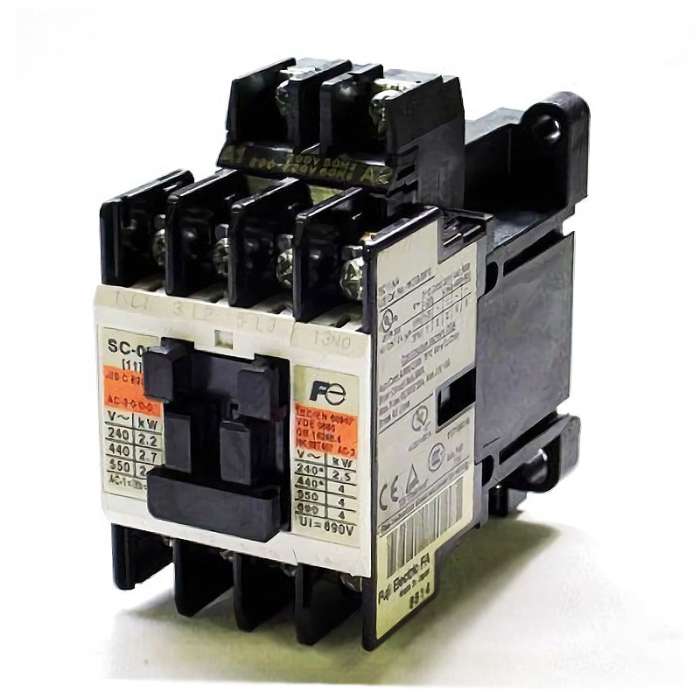

Part : Magnet Contactor SC-03

Manufacturer Part Number : 706SCO300200

Manufacturer : Fuji

Delivery & Return

Product Description

The SC series is a range of long service-life and high-performance contactors. SC-03 small frame contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks,  coil surge suppressors, and operation counters. Field modifications are quick and easy.

Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation

Product Specifications

Fuji "SC" series AC Contactors

Fuji Electric offers SC-M series mini contactors (up to 5HP at 480VAC), SC-E series contactors (up to 100HP at 480VAC), and TK-E series overload relays.

The Orange Line/Odyssey Series Contactors’ Super Magnet operation is electrically controlled without chattering, contact welding, or coil burning.

The Super Magnet accepts AC or DC coil control voltage. The Odyssey series is available up to 300HP at 480VAC; the Orange line series is available up to 10HP at 480VAC.

Specifications
Contactor TypeSC-03
Starter TypeSW-03/3H
Max. Motor Capacity200V/240V2.5 kW
380V/440V4 kW
5000V/550V4 kW
600V/660V4 kW
Rated Operational Current200V/240V11 A
380V/440V9 A
500V/550V1 A
600V/660V5 A
Thermal Current20

External Dimension

Magnet Contactor SC-03
