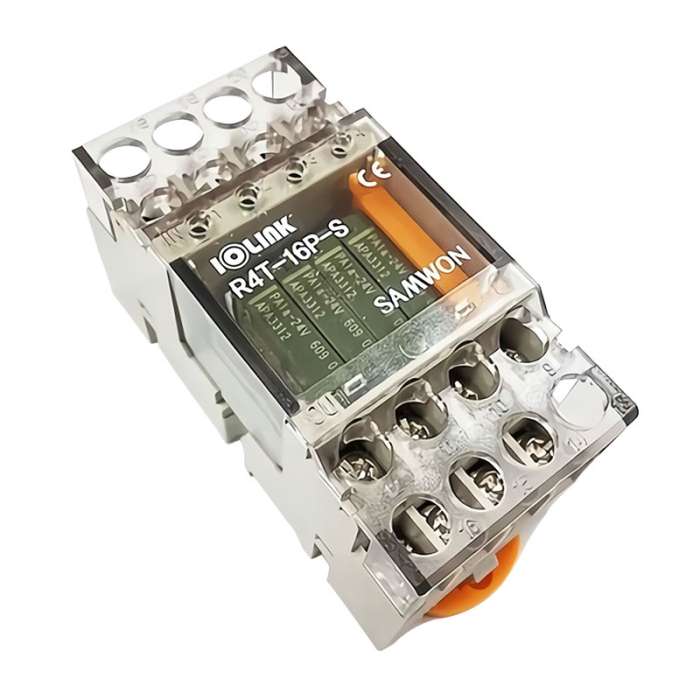

IOLINK R4T-16P-S Relay Board
Part : Iolink R4T-16P-S Relay Board (R4T16PS)
Manufacturer : Samwon ACT
Product Description
The IOLINK R4T-16P-S Relay Board is a high-endurance and economical relay board suitable for inductive loads, frequently opened/closed loads, or loads with significant noise. This board comes equipped with PANASONIC PA1a relays, offering convenient functions and reliable performance for various industrial applications.
Features:
- 4-Points, Individual Common Type:
- Equipped with 2 models mounting Takamisawa/Panasonic relay respectively available.
- Reliable high-endurance and economy-typed relay board suitable for inductive loads, frequently opened/closed loads, or loads with lots of noise.
- Convenient functions for the benefit of users.
- Easy to check operation status by attaching contact LED.
- Easy to work with a structure that can be mounted on DIN rail and middle plate.
- Easy maintenance as a relay replacement tool is provided.
- Easy wiring by using the built-in common bar.
- Supplied 2 Types of Models Equipped with TAKAMISAWA/PANASONIC Relays:
- Production of 2 types of 5 mm wide TAKAMISAWA NYP and PANASONIC PA-N relays.
- High-Reliability, Long-Life, and Economical Relay Board:
- Suitable for inductive loads, loads with frequent opening/closing, and loads with a lot of noise.
Product Specifications
| Specifications | ||
| Model | R4T-16P-S | |
| Installation Relay | PANASONIC PA1a-24V | |
| Point(s) | 4 Point (1*4) | |
| Rated Voltage | 24V DC | |
| Common | Coil | Individual Power Supply |
| Contact | Individual Common | |
| Interface | Coil | Screw Terminal |
| Contact | 7.62㎜ Pitch | |

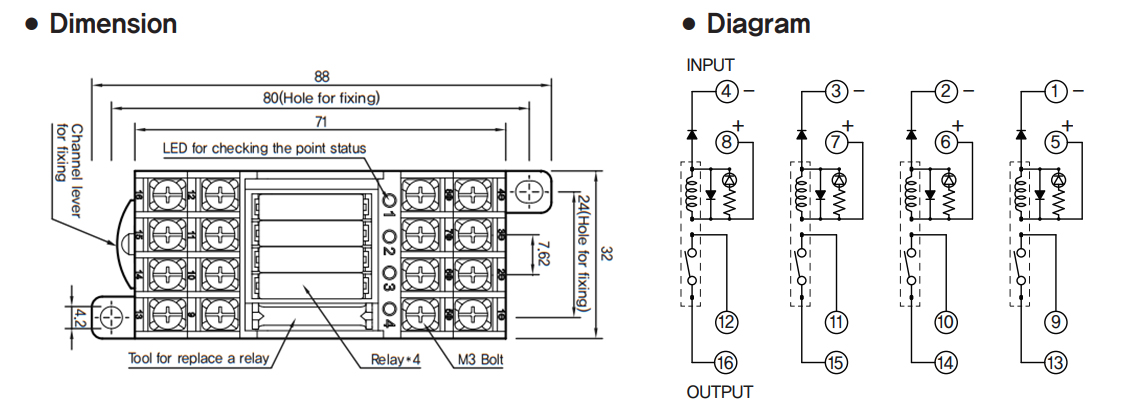

| Dimensions (WxD) | 32.3mm x 67.0mm | |
| Mounting Method | Screw Mounting DIN Rail (Channel) | |
| Detailed Specifications | ||
| Contact | Arrangement | 1 Form A (Bifurcated) |
| Nominal Switching Capacity (Resistive Load) | 5A 250V AC/5A 30V DC | |
| Max. Switching Current | 5A | |
| Max. Switching Voltage | 250V AC/ 110V DC (0.4 A) | |
| Coil | Nominal Voltage | 24V DC |
| Pick-up Voltage | 70% max. of Rated voltage | |
| Drop-out Voltage | 5% min. of Rated voltage | |
| Coil Resistance | 5,236Ω | |
| Nominal Operation Power | 110mW | |
| Surge Voltage Between Contact and Coil | 6,000V | |
| Initial Breakdown Voltage Between Contact and Coil | 3,000V rms for 1min | |
| Material Specification | ||
| Rated load capacity | CE | 250V AC, 30V DC / 5A |
| UL | 250V AC, 30V DC / 3A | |
| Suitable wire | AWG22~16 (1.5 ㎟ / MAX) | |
| Terminal screw | M3 X 6L | |
| screw torque | 7~8Kgf ㆍcm (0.68~0.78ㆍm) | |
| Case | Modified PPD | |
| Protecive cover | Polycabonate | |
| Board | Epoxy 1.6t / 2oz | |
| Ambient temperature | -10℃ ~ +50℃ (No condensation) | |
