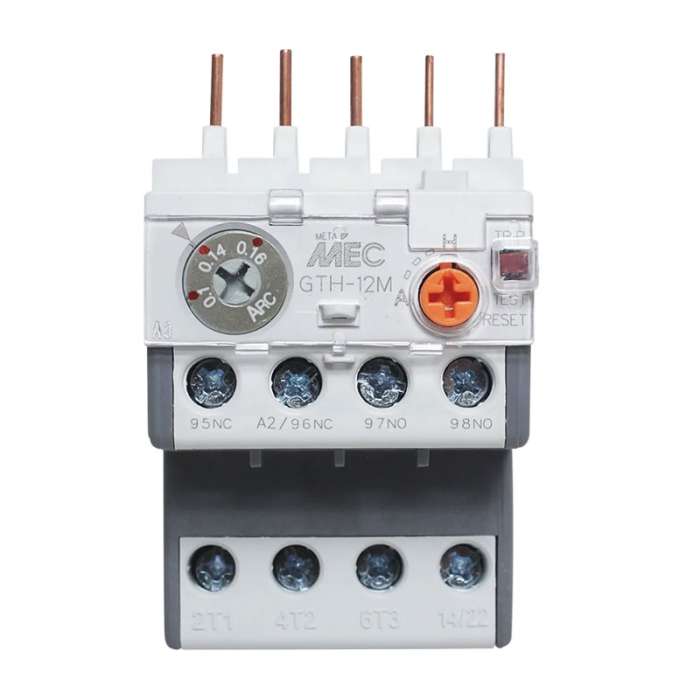

LS Thermal Overcurrent Relay GTH-12M 3.3 (2.5-4A)
Part : Thermal Overcurrent Relay
Part Number : C54341
Specifications : GTH-12M 3.3(2.5-4A)
Manufacturer : LS Electrics
Machine Type : Kwangrim Oil Chiller CIL Series, CIPL Series, CIW Series, CIC Series, and CHIL Series.
Product Description
LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A)
- CE Marking compliant products that have passed the certification test.
- Terminal cover is standard equipment.
- This is a UL-compliant product for your peace of mind.
- Can be mounted on any mini contactor regardless of frame size.
- With manual / auto reset function.
- Extremely compact at just 45 mm wide.
- Contact is 1a1b.
Product Specifications
| Specifications | |
|---|---|
| Model | GTH-12M~3.3 |
| Mini Contactor Frame Size | Common 12 AF |
| Setting Range | 2.5 ~ 4 |
| Number of Electrodes | 3 |
| Auxiliary Contact | 1a1b |
| Representative Standards | CD |
| Dimension Length | 73.2 mm |
| Dimension Width | 45 mm |
| Dimension Thickness | 63.7 mm |
| Specifications | Standard / 2 Element |
| Finger Protection / Thermal Cover | Yes |

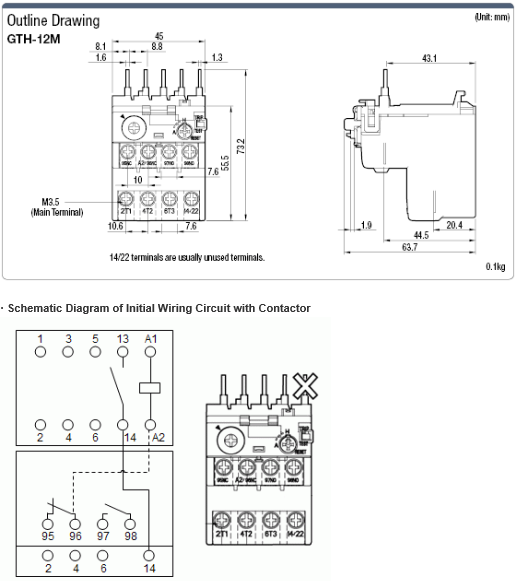

Product Drawing
| Product Name | LS Thermal Overcurrent Relay GTH-12M 3.3(2.5-4A) |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | LS Electric |
| Enable Request a Quote | No |
