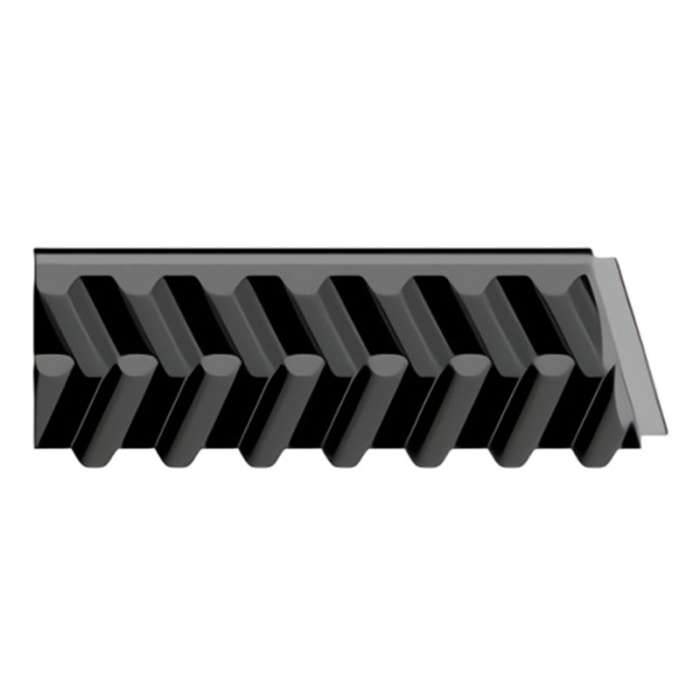

Part : Eagle PD W-800 Belt
Up to 25% more power capacity.
Static conductivit.
Up to 19 dB quieter than straight tooth belts.
Over 1,500 possible sprocket combinations.
Rated for continuous service at 200° F.
Up to 98% energy efficiency.
Categories:
Product Description
SilentSync’s patented Helical Offset Tooth (H.O.T.) design merges belt and sprocket into the quietest, smoothest and one of the most compact synchronous drive packages available.
The result is a continuous rolling tooth engagement that reduces vibration and improves the overall efficiency of your drive system.
Product Specifications
| Specifications | |
| Number of Teeth | 100 |
| Pitch/Datum | 8mm |
| Width | 32mm |
| Effective Length/Approx. Outside Length | 31.50 in |
| Belt Section | Eagle NRG White |
| Weight | 0.24 |
| Product Name | Belt Eagle PD W-800 |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
