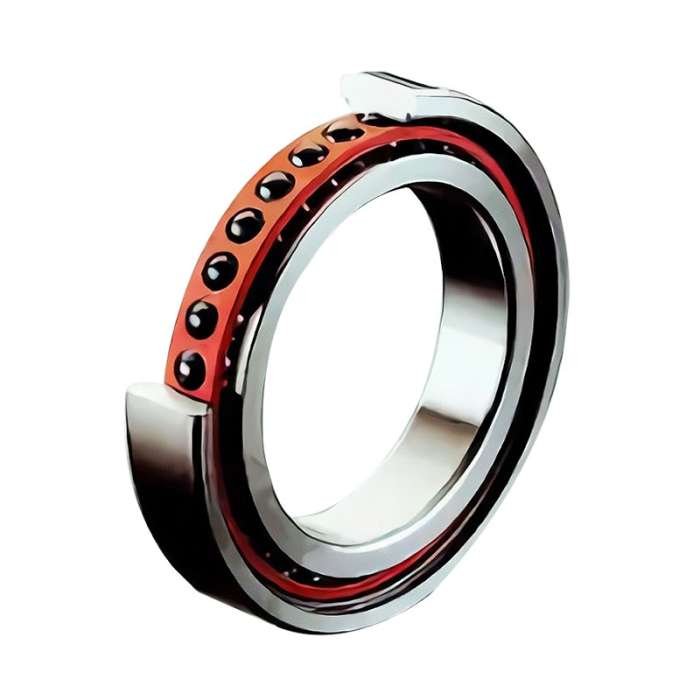

Parts : FAG Super Precision Single Row Angular Contact Bearing
Part Number : B7006C.T.P4S.UL (5917006CP401FA)
Dimensions : 30 mm x 55 mm x 13 mm
Manufacturer : FAG
Categories:
Product Description
As machine tools are the main field of application for FAG super precision bearings,
the super precision bearing range is built up in such a way that all machine tool locations requiring such bearings - spindles, ball screws, rotary tables - can be served.
Thanks to the high performance standard of the existing product range, specific tailor-made solutions are rarely required.
Product Specifications
| Technical Specifications | ||
| Bearing No. | B7006C.T.P4S.UL | |
| Dimensions | d | 30 mm |
| D | 55 mm | |
| B | 13 mm | |
| r min | 1 mm | |
| r 1 min | 1 mm | |
| Abutment Dimensions | da h12 | 36 mm |
| Da h12 | 49 mm | |
| ra max | 1 mm | |
| rb max | 0.3 mm | |
| Load Ratings | Cdyn Kn | 15 mm |
| C0stat | 10.2 mm | |
| Bearing Code | Dimensions | Abutment Dimensions | Load Ratings | ||||||||
| B7006C.T.P4S.UL | d | D | B | rs min | r1s min | da h12 | Da H12 | ra max | rb max | Cdyn Kn | C0stat |
| 30 | 55 | 13 | 1 | 1 | 36 | 49 | 1 | 0.3 | 15 | 10.2 | |
| Product Name | FAG Super Precision Single Row Angular Contact Bearing B7006C.T.P4S.UL |
|---|---|
