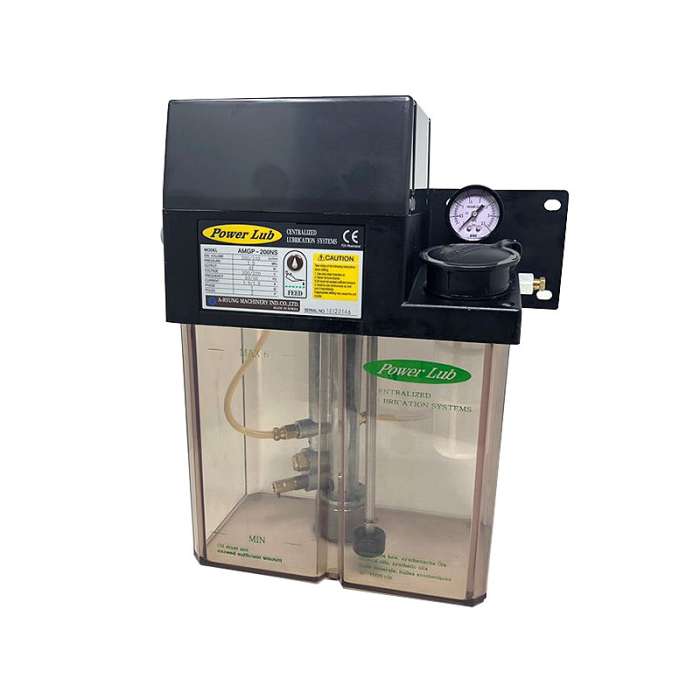

A-Ryung Lubrication Pump AMGP-200NS-T06 110V
Part : Lubrication Pump
Manufacturer Part Number : AMGP-200-T06 110V
Manufacturer : A-Ryung
Categories:
Product Description
• AMGP-200NS pump is a resistive and intermittent pump, using a measuring valve (ARD-340,350 and PVO type).
• This pump has a float switch and pressure switch inside to check the oil level and connect to the outside terminal on the main machine to monitor the working conditions.
• A feed button switch inside of the pump makes it is easy to remove air and operate the pump manually.
• This pump is mainly used in machine tools, printing, food manufacturing, injection machines, press and various industrial machines.
Product Specifications
| Specifications | |
|---|---|
| Discharge Volume | 200/400 cc/min |
| Working Pressure | 2 Mpa |
| Pressure Range Mpa | 0.8~2.5 Mpa |
| Reservoir Capacity | 6 L |
| Viscosity | 30~100 cSt |
| Outlet | 1/4" (Ø6) PT |
| Net Weight | 5.8 kg |
| Motor Output | 42 W |
| Phase Poles | 1Ø/2P |
| Frequency | 50/60 Hz |
| Rate Voltage | 110 V |
| Current | 4.8/2.1 A, 5.0/1.8 A |

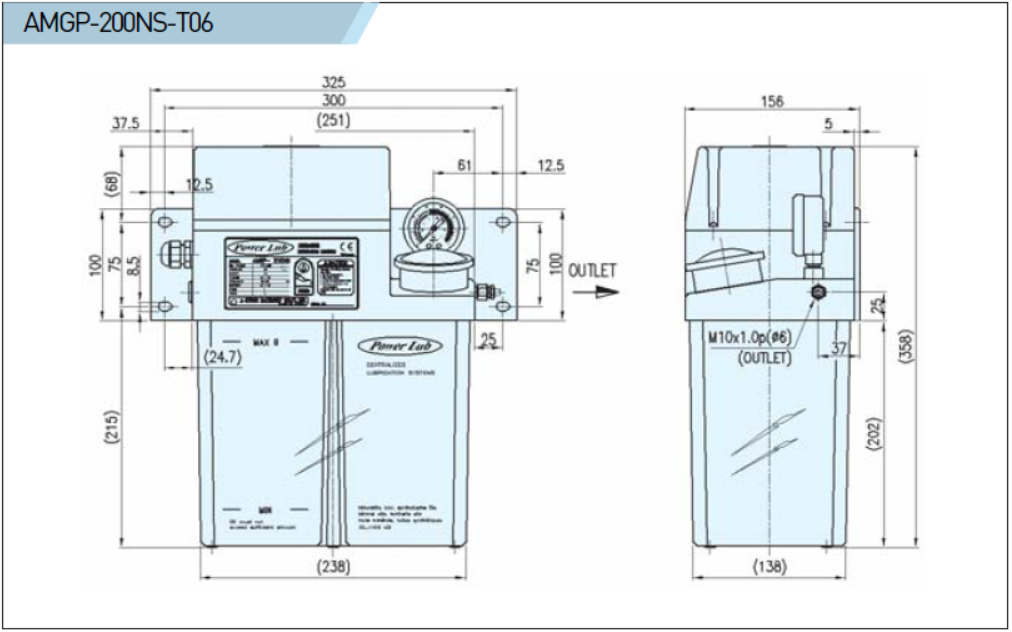

External Dimensions

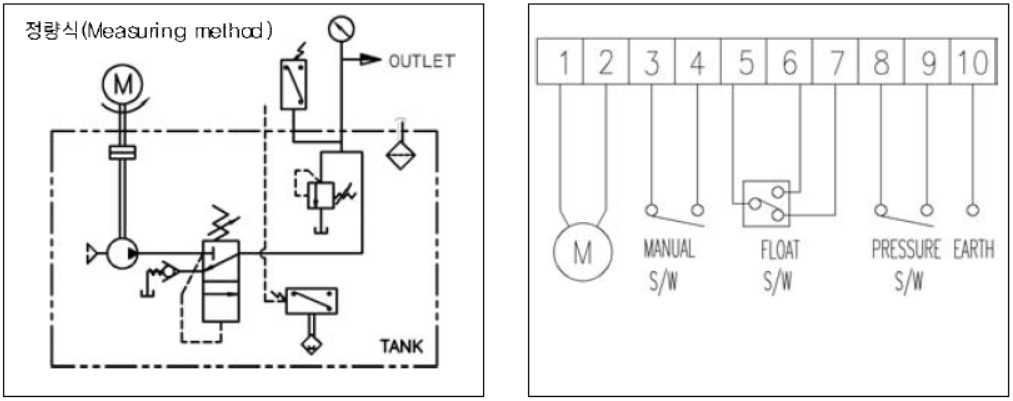

Circuit Diagram & Electrical Connections
High heat may occur in the motor while it's running. The motor stops automatically when this occurs. The pump will work normally once the motor has cooled.
