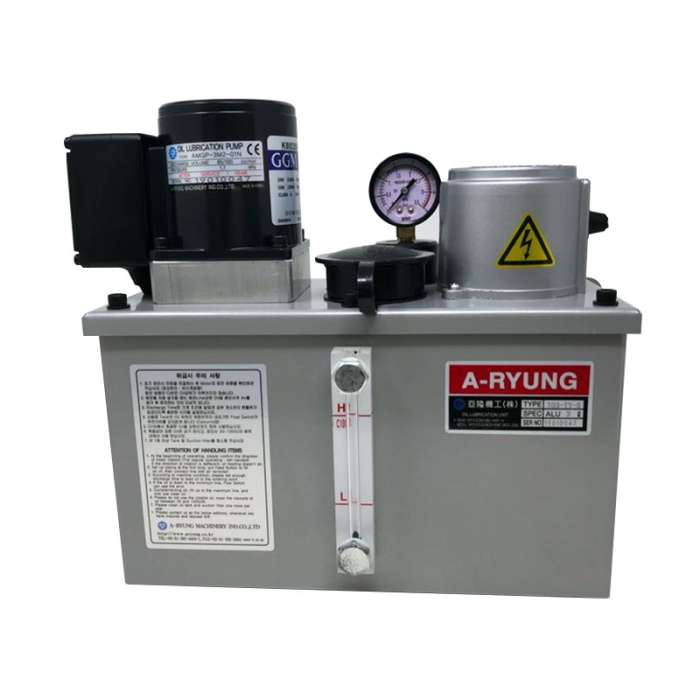

Part : A-Ryung Lubrication Pump
Model : AMGP-3M2-02N-T12-TY-S
Manufacturer : A-Ryung
Categories:
Product Description
AMGP-01N, 02N series lubrication pumps are high-precision, high-flow pumps specially designed to lubricate a fixed amount of lubricant to each machine element. Depending on the application, it is used as a proportional type or in combination with a quantitative valve (ARD-340,350. PVO type) as a quantitative pump. (When using in a fixed-quantity type, a pressure relief valve must be attached.)
A built-in relief valve enables pressure adjustment, and it is easy to configure a lubrication unit by assembling it with a tank.
This pump is an intermittent pump and should not be operated continuously.
Applications are widely used in machine tools, printing machines, food machines, injection machines, presses, and various industries.
Product Specifications
Pump Spec’
| Type | Discharge volume | Working pressure | Pressure range | Viscosity | Outlet | Phase 3Ø, Poles 4P | |||
| Motor Output | Fre- quency | Rated voltage | Current | ||||||
| 02N | 170 200 | 2 | 0.8 ~ 2.0 | 30 ~ 500 | 1/8"(Ø6) | 25 | 50 60 | 200/380/415 200/380/440 | 0.27/0.17/0.13 0.24/0.14/0.12 |
External Dimensions
| Type | A | B | C | D | E | F | G | H | J | Net weight / Kg |
| 02N-T12 | 363 | 386 | 416 | 373 | 234 | 240 | 11 x 16 | 24 | 160 | 9.8 |
| Product Name | A-Ryung Lubrication Pump AMGP-3M2-02N-T12-TY-S |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included. |
| Estimated Delivery | 21 Days |
| Shipping For Product | 200.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | A-Ryung |
| Enable Request a Quote | Yes |
