Availability:
Shipping directly from South korea. Import duties are included
Estimated Delivery:
21 Days
SKU
702RAA6012KG
$680.00

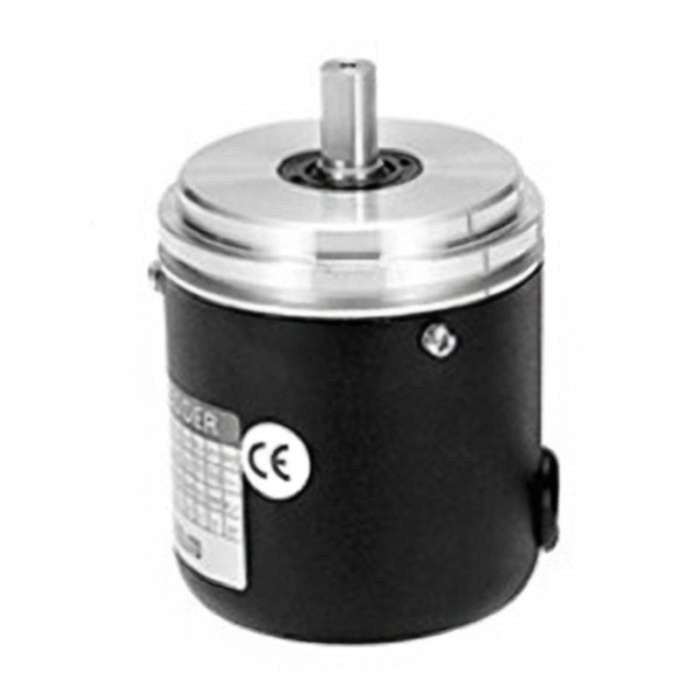

Part : Rotary Encoder RAA-60 Series
Type : FFG DMC Machine
Resolution : Binary code (12 degrees)
Manufacturer Model Number : RAA-60-0012PDG
Manufacturer : Kwangwoo
Categories:
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | |
| Resolution | 8/10/12 P/R |
| Supply Voltage | DC 24V |
| Current Consumption | 80 mA Max. |
| Max. Response Frequency | 20 kHz Max. |
| Rising Time | 3 µs Max. |
| Falling Time | Max.3 µs |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 5,000 RPM | |
| Starting Torque | 200gf/cm Max. at 25°C or .0145 fp Max. at 77°F | |
| Angular Torque | 30gf/cm sq Max. or 61.4 fp/ft sq Max. | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 10∼55Hz / 1.5mm | |
| Shock Resistance | 50G 11msec | |
| Operation Temp. Range | 14°F ~ 140°F or -10°C ~ 60°C | |
| Storage Temp. Range | -4°F ~ 176°F or -20°C ~ 80°C | |

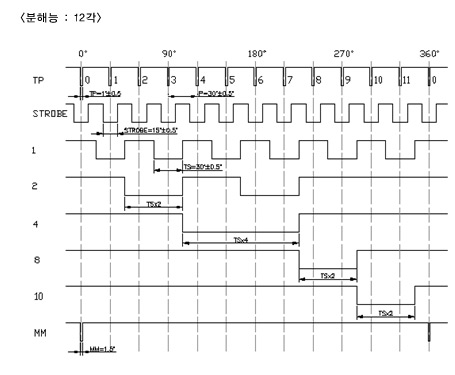

Rotary Encoder Kwangwoo 12 Station
Options
| Product Name | Kwangwoo Rotary Encoder RAA-60-0012PDG |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included |
| Estimated Delivery | 21 Days |
| Shipping For Product | 100.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | Kwangwoo |
| Enable Request a Quote | No |
