SKU
KS68A-1000
$1,300.00

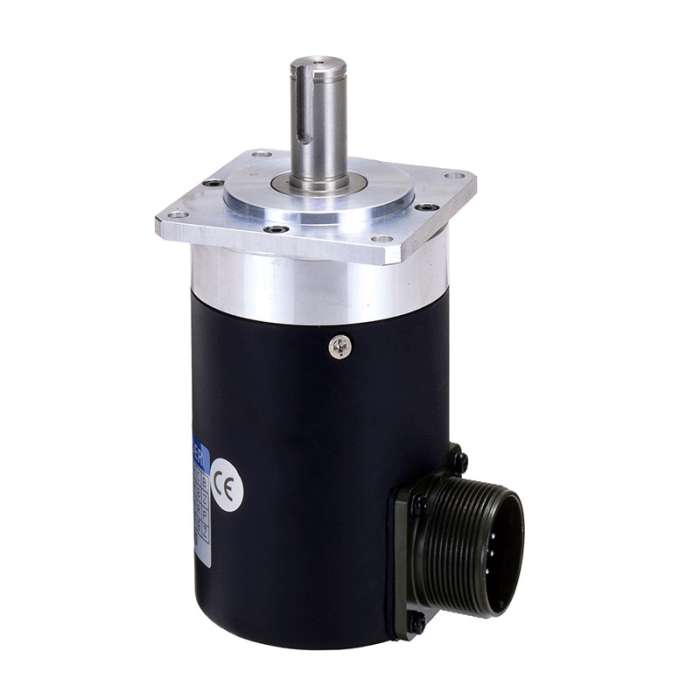

KS68A Series
Part : Rotary Encoder
Type : Rigid shaft
Resolution : 1000
Model Number : KS68A-1000
Manufacturer : Kwangwoo
Categories:
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
|---|---|---|
| Resolution (P/R) | 100/1000/1024/2000/2048 | |
| Supply Voltage | Line Drive | VL = 0.5V |
| VH = 2.5V (DC +5V) | ||
| Open Collector | ||
| Voltage Output | VL = 0.5V | |
| Complemental | VH = 2.5V (DC +5V), 10V (DC +15V), 18V (DC +24V) | |
| Totempole | ||
| Current Consumption | 150 mA Max | |
| Max. Response Frequency | 150 kHz Max. | |
| Rising/Falling Time | Line Drive | 0.1μs / 20mA |
| Open Collector | 3μs / 20mA | |
| Voltage Output | 3μs / 20mA | |
| Complemental | 1μs / 10mA | |
| Totempole | 1μs / 10mA | |
| Mechanical Specifications | ||
| Maximum Rotating Speed | 8,000 RPM | |
| Starting Torque | 800 gf·cm | |
| Allowable Shaft Load | Radial | 5kg Max |
| Axial | 5kg Max | |
| Vibration Resistance | 5G | |
| Shock Resistance | 50G | |
| Operation Temp. Range | -10°C ~ +70°C | |
| Storage Temp. Range | -20°C ~ +85°C | |
| Protection | IP54 | |
| Weight | 720g | |
Connection Table
| PIN No. | Line Drive | Open Collector, Complemental, Voltage Output & Totem Pole |
| H | Vcc | Vcc |
| K, M | GND | GND |
| A | A | A |
| N | /A | - |
| C | B | /B |
| R | /B | - |
| B | Z | Z |
| P | /Z | - |
| T | F/G | F/G |
Product Drawing
