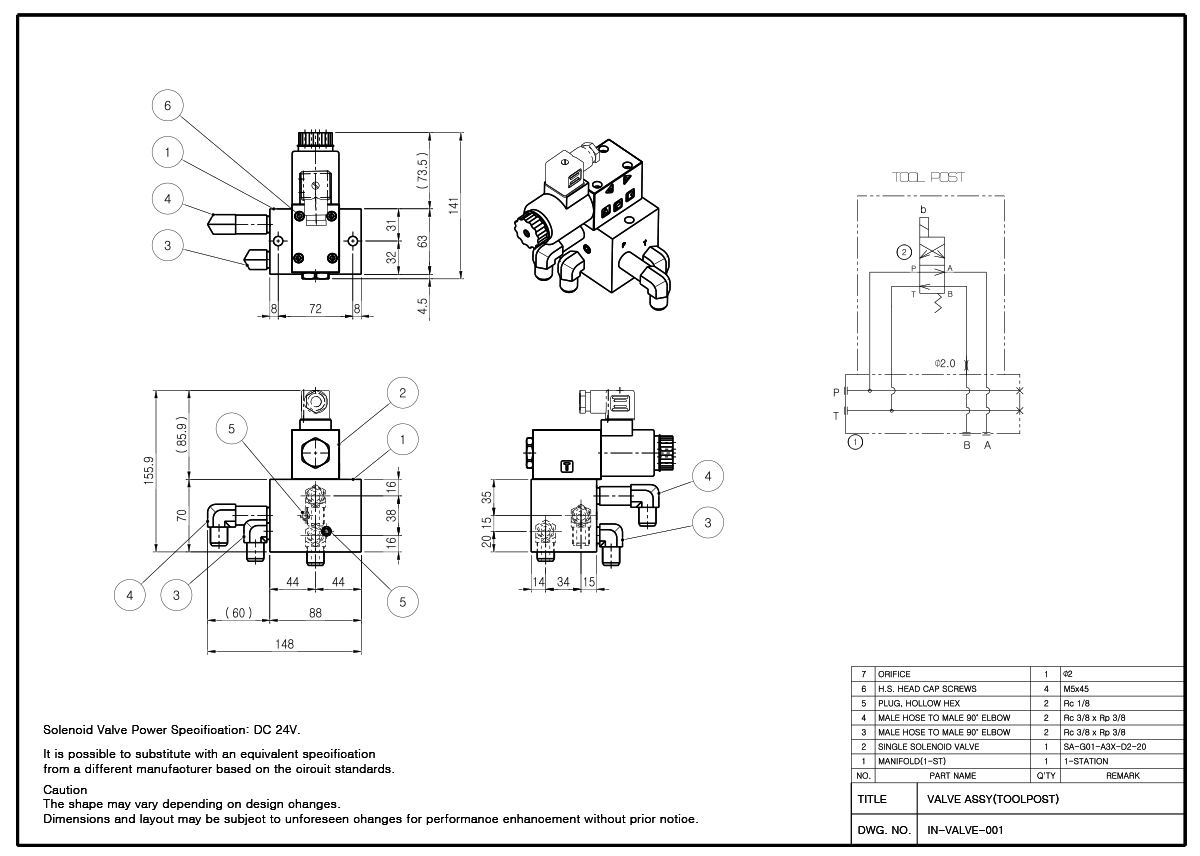

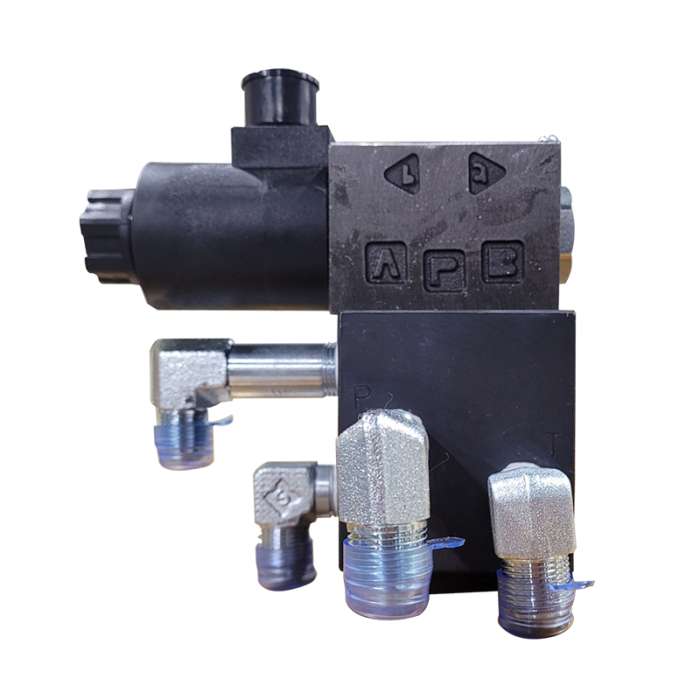

CPart : Valve Assy (TooL Post)
Model Number : Valve assy 001
Manufacturer : IndustryNest
Categories:
Product Description
The modular valve is an integrated valve that meets the diversity and rationality required for hydraulic devices in a new era, without using pipes. The modular valve has standardized mounting surfaces and thicknesses for each size, allowing hydraulic circuits to be configured by stacking valves and tightening bolts. Its applications range widely from various machine tools and automatic machinery to large equipment such as ships and steel facilities.
Features:
- It significantly reduces mounting space and spatial requirements.
- Assembly work is quick, allowing for easy and rapid addition or modification of circuits.
- Issues such as leaks, vibrations, and noise commonly associated with piping are minimized, enhancing reliability.
- Easy maintenance and inspection due to centralized installation.
The mounting surface dimensions of the modular valve comply with the international standard ISO 4401-03-02-0-05.
Product Specifications
| Product Name | Valve Assy (ToolPost) |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | ASM enterprise |
| Enable Request a Quote | Yes |
