Availability: Shipping directly from South korea. Import duties are included.
Estimated Delivery: 21 Days
SKU
ACRK250550Hz

Part : Coolant Pump

Model : ACRK 2-50/5 50Hz

Manufacturer : A-Ryung

Delivery & Return

Product Description

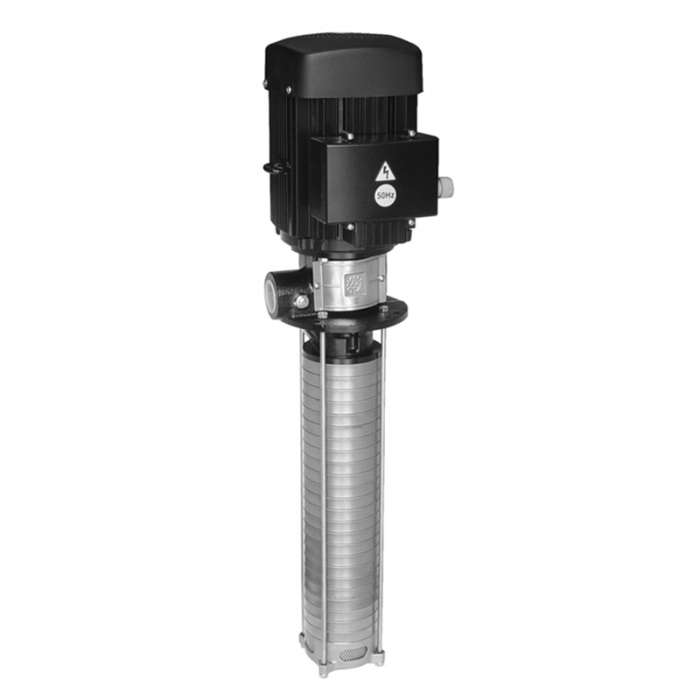

ACRK series is high-pressure, multi-staged centrifugal pump. This pump is used machine and tools for high precision and performance to make cool the processing materials and wash out the sludge.

The application range of this type is for cooling systems of NC, CNC, lathe, machining center, grinding machine, and filtering systems and washing machine. The major raw materials consists of stainless steel, and the
mechanical seal is made FKM that endures high temperature and keeps long-life performance.

Product Specifications

Specifications
Pump typeMotorCurrent
(A)
Motor
Efficiency
(%)
Frame No.(P2) kW
ACRK 4-50/5 50HzF80S0.552.50 / 1.32 / 1.2173

External Dimensions

ACRK 2-20 2 50Hz

Performance Range

ACRK 2-20 2 50Hz



Because of low cooling effects by low density of the air on condition of ambient temperature above 40C or altitude over 1000m, the output of motor should be lowered more below than standard capacity.

Example) When the pump should be installed sea level 3500m and ambient temperature

Dimensions(mm)Net
weight (kg)
ABCD1EF
5522193331487412314.1
More Information
Product Name A-Ryung Coolant Pump ACRK 2-50/5 50Hz
Availability Shipping directly from South korea. Import duties are included.
Estimated Delivery 21 Days
Shipping For Product 500.000000
Calculate Shipping Per Product Quantity
Enable Shipping Per Product Yes
Brand A-Ryung
Enable Request a Quote Yes
Write Your Own Review
You're reviewing:A-Ryung Coolant Pump ACRK 2-50/5 50Hz
Your Rating

Please leave a question about the products, our engineer will reply back to you.
