Part : Compact Type Hose
Parts Number : 1C1-04
Inside Diameter : 1/4"
Max Operating Pressure : 15.0Mpa (150bar, 2170psi)

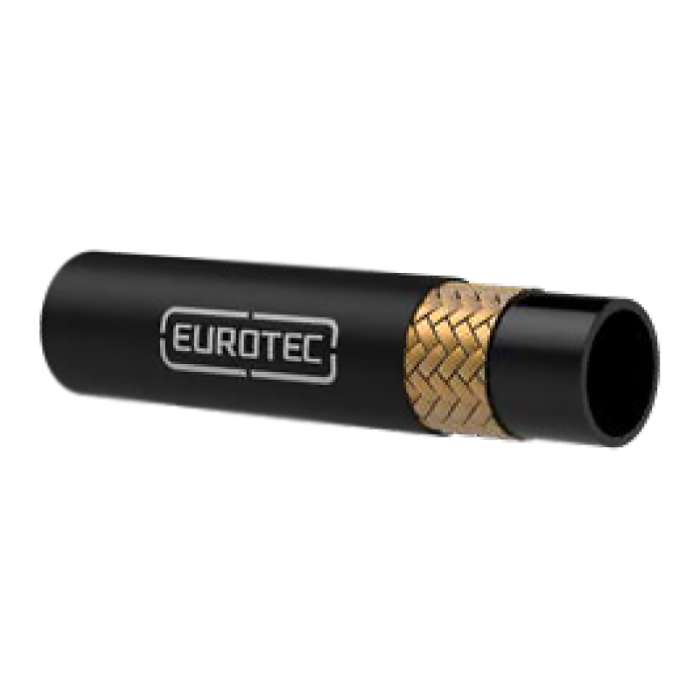

Compact Type Hose (Parts No. 1C1-04)
1 WIRE BRAID HOSE
Inner tube
HYDRAULIC OIL RESISTANT SYNTHETIC RUBBER
Reinforcement
ONE HIGH TENSILE STEEL WIRE BRAID
Outer cover
OIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBER
Application
FOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT
※ For air or gas application, external cover shall be PIN-PRICKED over 10kg/㎠ pressure,
resin hose is recommendable
Range of temperature
-40℃ ~ +100℃ (-40℉ ~ + 212℉)
for air -40℃ ~ +70℃ (-40℉ ~ +158℉)
Hose Specification (1C1-04)
Fitting Specification (S202-04-04)
| Product Name | 1C1-04|1/4" inside Diameter, 2170Psi Hydraulic Hose Assembly |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | Hydraulic Hose |
| Enable Request a Quote | No |
| Custom Dynamic Rows | [{"record_id":"0","title":"With Fittings - 1\/4 inch Female x Female ","value":"5","initialize":"true"},{"record_id":"1","title":"Without Fittings","value":"0.0","initialize":"true"}] |
