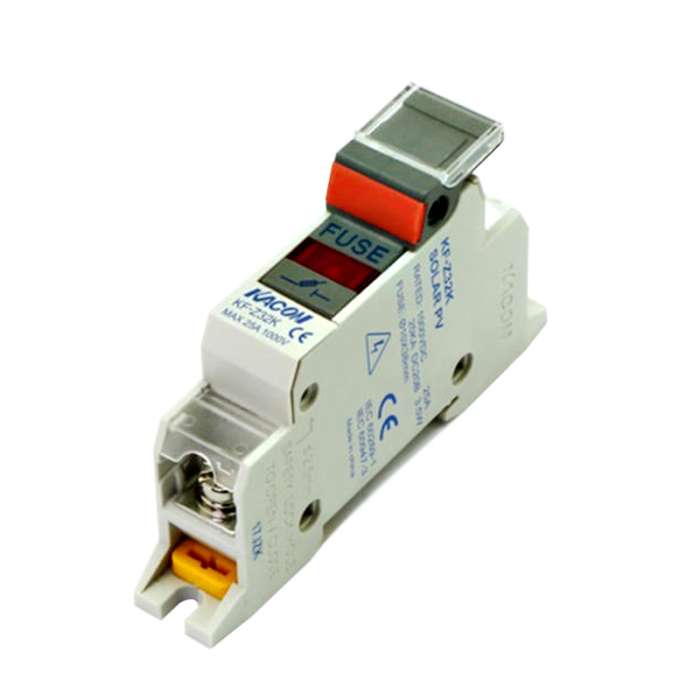

Part : Kacon Fuse Holder
Part Number : KF-Z32K
Machine Type : Kwangrim Oil Chillers in the CIL series, CIPL series, CIW series, CIC series, and CHIL series.
Product Description
• Excellent convenience in construction and in everyday use
• Compact and pleasing appearance
| Specifications | |
|---|---|
| Part Number | KF-Z32K |
| Fuze | KF-ZB Series |
| Rated Voltage and Current | 25A 1000V DC |
| Insulation Resistance | 100MΩ 500V DC |
| Dielectric Strength | 2,500V per 1 minute, 50/60 Hz |
| Vibration Resistance | 10 ~ 50 Hz Durable Amplitude 1.5mm |
| Ambient Temperature | -40 ~ 70°C (no icing) |
| Ambient Humidity | Max. 85% RH |

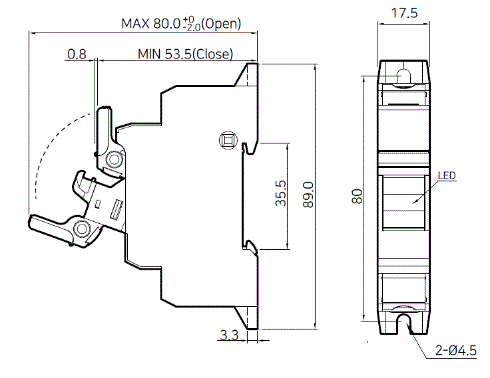

Part Drawings and Dimensions |
 |
