Part : SAE 100R1 AT, DIN EN 853 1SN
Parts Number : 101-12
Inside Diameter : 3/4"
Max Operating Pressure : 10.5Mpa (105bar, 1530psi)

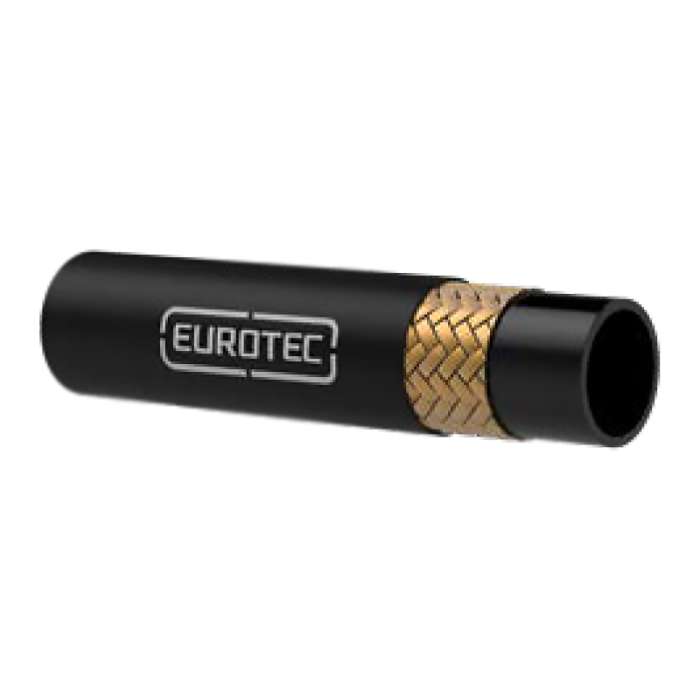

SAE 100R1 AT, DIN EN 853 1SN (Parts No. 101-12)
1 WIRE BRAID HOSE / NO SKIVE TYPE
Inner tube
HYDRAULIC OIL RESISTANT SYNTHETIC RUBBER
Reinforcement
ONE HIGH TENSILE STEEL WIRE BRAID
Outer cover
OIL, WEATHER AND ABRASION RESISTANT SYNTHETIC RUBBER
Application
FOR HIGH PRESSURE HYDRAULIC CIRCUIT SYSTEM FOR EQUIPMENT
※ For air or gas application, external cover shall be PIN-PRICKED over 10kg/㎠ pressure,
resin hose is recommendable
Range of temperature
-40℃ ~ +100℃ (-40℉ ~ + 212℉)
for air -40℃ ~ +70℃ (-40℉ ~ +158℉)
Hose Specification
Fitting Specification (S202-12-12)
| Product Name | 101-12|3/4" inside Diameter, 1530Psi Hydraulic Hose Assembly |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | Hydraulic Hose |
| Enable Request a Quote | No |
| Custom Dynamic Rows | [{"record_id":"0","title":"With Fittings - 3\/4 inch Female x Female ","value":"13","initialize":"true"},{"record_id":"1","title":"Without Fittings","value":"0.0","initialize":"true"}] |
