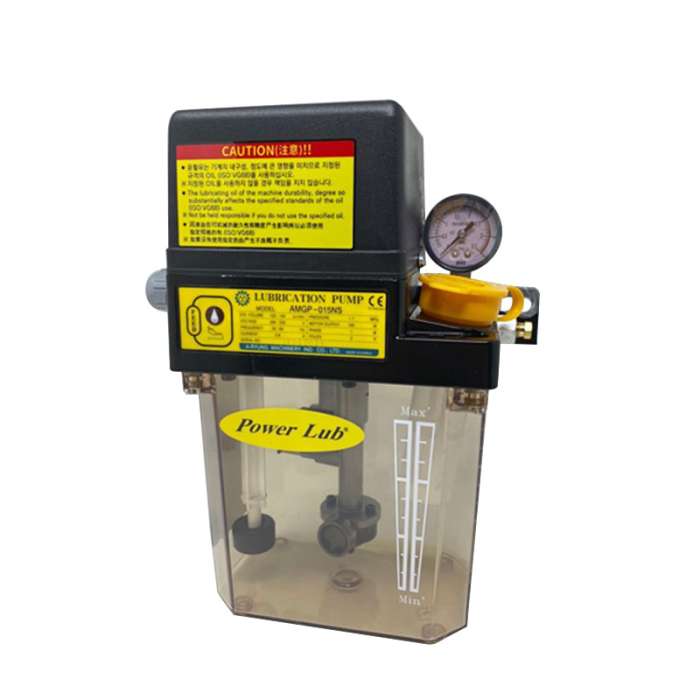

Part : Lubrication Pump
Manufacturer Part Number : AMGP01NS 220V / AMPG015NS 220V
Manufacturer : A-Ryung
AMGP 01NS and AMPGP 015 NS are the same model.
Categories:
Product Description
The AMGP-01NS/015NS lubrication pump is a resistive and intermittent pump with a measuring valve.
• This pump has a float switch and a pressure switch inside to check the oil shortage and connect the outside terminal on the main machine to monitor the working conditions.
• As the pump is installed with a feed button switch inside of the pump, it is easy to remove the air and operate manually.
• This pump is mainly used for machine tools, printing, foods, injection machines, presses, and various industrial machines.
Product Specifications
| Type | Discharge volume | Working pressure | Pressure range | Reservoir capacity | Viscosity | Outlet | Net weight | Motor Output | Phase Poles | Frequency | Rated voltage | Current |
| AMGP 01NS/15NS | 125/150 cc/min | 1.7 Mpa | 0.2~1.7 Mpa | 1.8 L | 30~500 cSt | 1/4"( Ø6) PT | 3 Kg | 25W | 1Ø/2P | 50/60 Hz | 220V | 1.7/0.8 1.8/0.9 |
As this pump operates, high heat can occur in the motor. The motor stops automatically if high motor heat occurs, causing the interval time to be shorter than discharge time. The pump works normally after motor cooling.
Circuit Diagram & Electrical Connections
External Dimensions
| Product Name | A-Ryung Lubrication Pump AMGP015NS 220V |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included. |
| Estimated Delivery | 14 Days |
