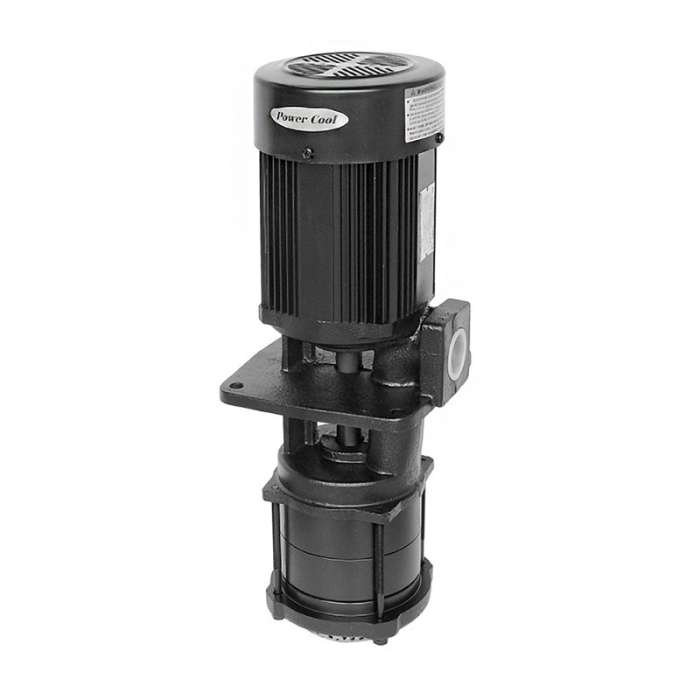

Part : Coolant Pump
Model : ACP-1800MF
Manufacturer : A-Ryung
Reference parts number: 400907-00059A, 90014736001, D16000111H
Product Description
ACP-MF(S) is a multi-stage centrifugal pump which generates a large quantity of oil flow for large machines with high precision & efficiency. It makes the surfaces of working part slick by flowing down & washing chips with cooling fluid.
Product Specifications
| Specifications | ||
|---|---|---|
| Type | ACP-1800MF | |
| Pump | Discharge Volume | 250/160 /min |
| Head | 10/15 m | |
| In-let & Out-let | 1 1/4" PS | |
| Immersion Depth | 245 mm | |
| Motor | Out-put | 1800 W |
| Frequency Voltage | 50/60 Hz | |
| Voltage | 200/380/415 V | |
| Current | 6.6/3.8/3.5 A | |
| Weight | 38 kg | |

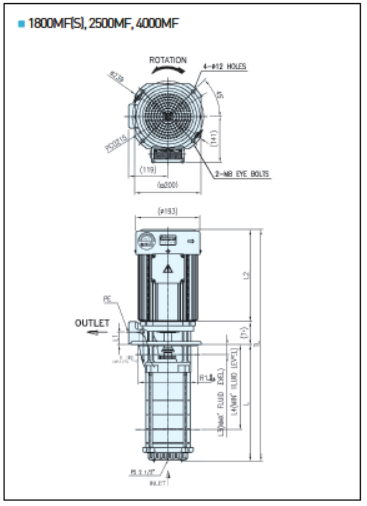

External Dimensions

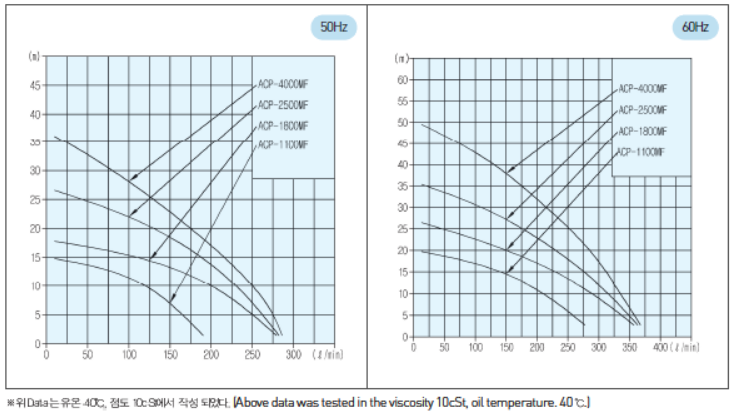

Performance Range
The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.
| TYPE | L | L1 | L2 | L3 | L4 | TL | R1 | PE |
| 1800MF | 280 | 38 | 219 | 30 | 182 | 573 | 180 | PS1 1/4" |
| Product Name | A-Ryung Coolant Pump ACP-1800MF |
|---|---|
| Estimated Delivery | Within 3 weeks after reciept an order |
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | A-Ryung |
| Enable Request a Quote | No |
