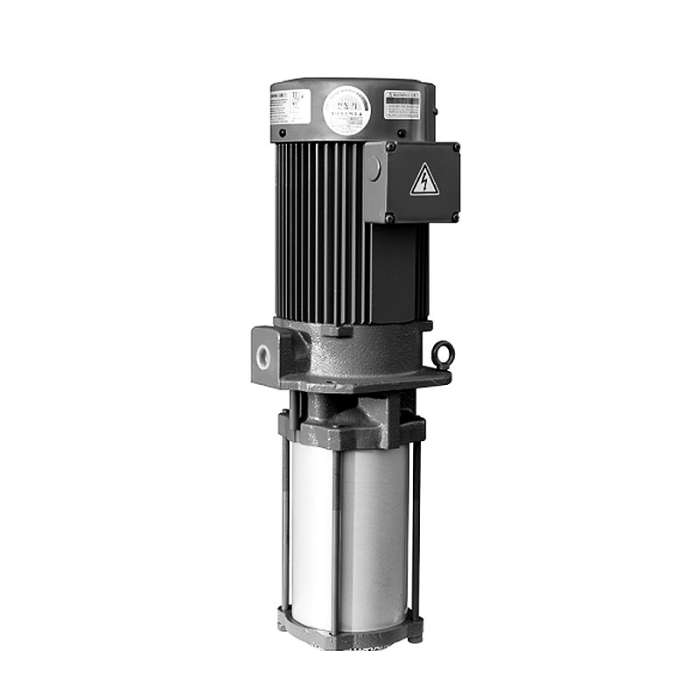

A-Ryung Coolant Pump ACP-5500HMFD 200V
Part : Coolant Pump
Model Number : ACP- 5500HMFD 200V
Manufacturer : A-Ryung
Product Description
The ACP-HMFD series pumps are high-head, multi-staged centrifugal pumps designed for use on large machines with high precision and efficiency.
These pumps are engineered to prevent motor temperature from transferring to the pump, ensuring a constant oil temperature.
Product Specifications
| Specifications | ||
|---|---|---|
| Type | ACP-5500HMFD 200V | |
| Pump | Discharge Volume | 20 /min |
| Head | 145/200 m | |
| In-let & Out-let | 1 1/2" PS | |
| Immersion Depth | 470 mm | |
| Motor | Out-put | 5500 W |
| Frequency Voltage | 50/60 Hz | |
| Voltage | 200/380/415 V | |
| Current | 20.0/11.5/10.5 A | |
| Weight | 75 kg | |
External Dimensions
Performance Range
The liquid should be filled up to the limit lines indicated on the pump body. The maximum liquid level should be kept below 20 mm from the tank top to prevent dispersion. If the liquid level is too low, it can cause noise and reduce performance. The discharging volume varies with liquid viscosity. High viscosity increases motor heat; therefore, cutting oil viscosity should be under 32 cSt. This pump is low-head and cannot discharge if there is pipe resistance when a check valve is installed.
| TYPE | L | L1 | L2 | L3 | L4 | TL | R1 | PE |
| 5500HMFD 220V | 470 | 33 | 352 | 38 | 405 | 893 | 180 | PS 3/4" |
