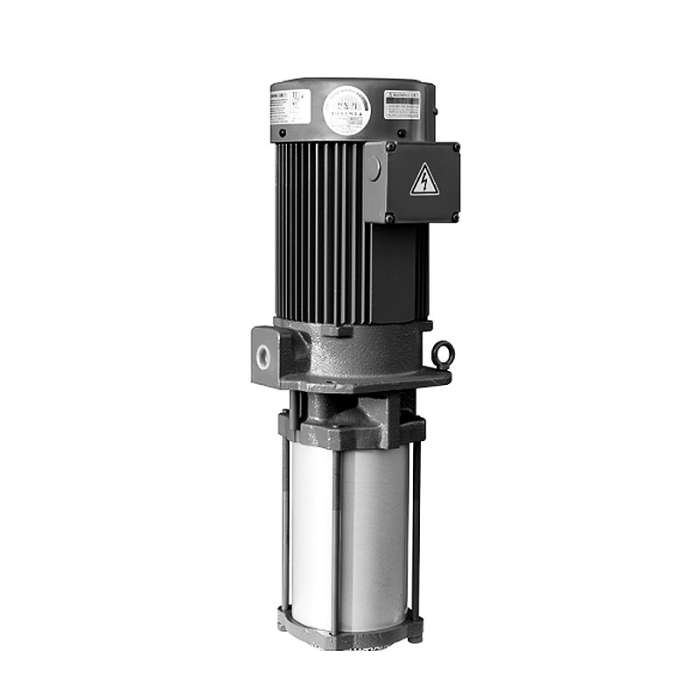

A-Ryung Coolant Pump ACP-4000HMFD 180V
Part : Coolant Pump
Model Number : ACP- 4000HMFD 180V
Manufacturer : A-Ryung
Product Description
The ACP-HMFD series pumps are high-head, multi-staged centrifugal pumps designed for large machines requiring high precision and efficiency. These pumps ensure that the motor's temperature does not transfer to the pump, maintaining a constant oil temperature.
Product Specifications
| Specifications | ||
|---|---|---|
| Type | ACP-4000HMFD 180V | |
| Pump | Discharge Volume | 20 /min |
| Head | 125/200 m | |
| In-let & Out-let | 1 1/2" PS | |
| Immersion Depth | 325 mm | |
| Motor | Out-put | 4000 W |
| Frequency Voltage | 50/60 Hz | |
| Voltage | 200/380/415 V | |
| Current | 14.2/8.2/7.5 A | |
| Weight | 64 kg | |
External Dimensions
Performance Range
The liquid level should be maintained between the indicated limit lines on the pump body. The maximum liquid level should be kept below 20 mm from the tank top to prevent dispersion. If the liquid level is too low, it can cause noise and reduce performance. The discharging volume varies with liquid viscosity. High viscosity increases motor heat, so cutting oil viscosity should be kept under 32 cSt. This pump cannot discharge if there is pipe resistance when a check valve is installed.
| TYPE | L | L1 | L2 | L3 | L4 | TL | R1 | PE |
| 4000HMFD 180V | 325 | 33 | 286 | 38 | 260 | 682 | 180 | PS 3/4" |
| Product Name | A-Ryung Coolant Pump ACP- 4000HMFD 180V |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included. |
| Estimated Delivery | 21 Days |
| Shipping For Product | 500.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | A-Ryung |
| Enable Request a Quote | Yes |
